- Our processing efficiency far surpasses that of roll fed cutting plotters.
- No need to remove the top-layer protective film before cutting, which streamlines the operation process.
- It minimizes the indentations left on the material surface to the greatest extent possible.
- It is especially well - suited for the precise cutting of extra - large and extra - long workpieces.
Using Grating Scale

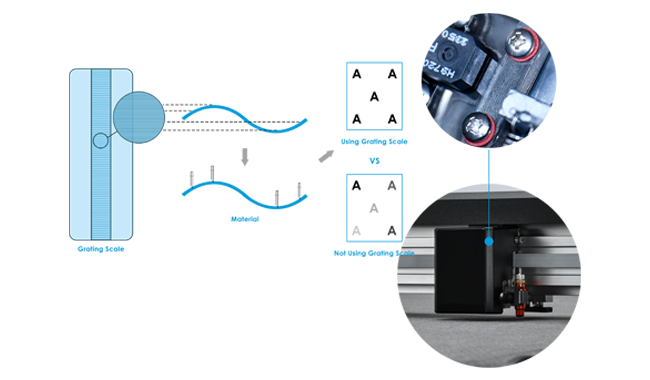

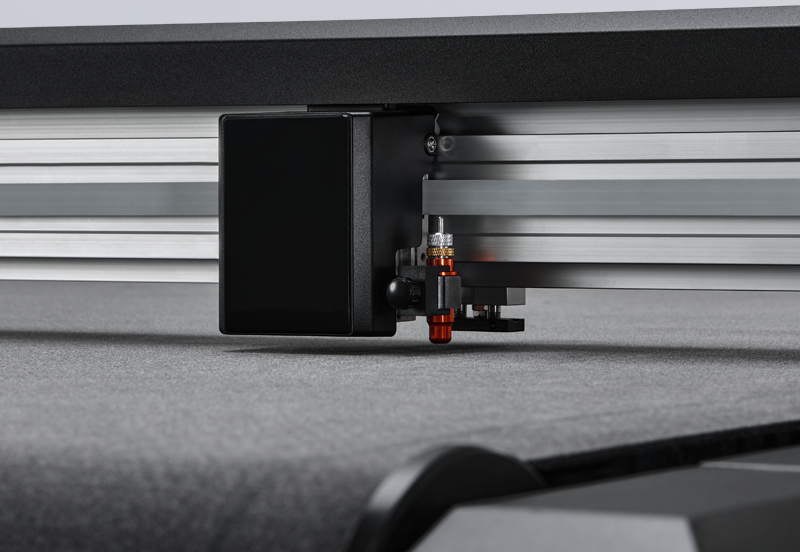

In actual situations, the surface of the machine table and that of the material being processed will inevitably experience certain undulations. This necessitates that the cutting tool be able to float accordingly. Otherwise, issues such as excessive or insufficient cutting depth will arise, which in turn leads to difficulties in smooth waste removal. Outperforming the vast majority of competitors, we took the lead in adopting precise grating scale to detect the distance between the tool-tip and the material surface in real - time. This enables us to adjust the cutting pressure in real - time to regulate the cutting depth. Consequently, a uniform cutting depth within the material can be achieved, allowing for easy waste removal after cutting. Meanwhile, the cutting tool will not damage the surface of the machine table.
Using Voice-coil Motors

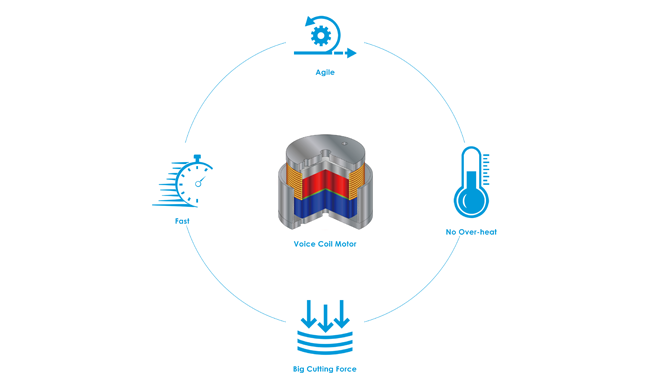

Unlike electromagnets, voice coil motor can execute commands for pressure adjustment with greater sensitivity, thereby ensuring more consistent cutting depths. Moreover, voice coil motor can cut ultra - thin materials with higher precision, as it is capable of outputting a minimum cutting pressure of 20 grams. Additionally, voice coil motor features low noise and do not overheat even after extended periods of operation.
Tool-tip Compensation Has Been Embeded into Chip

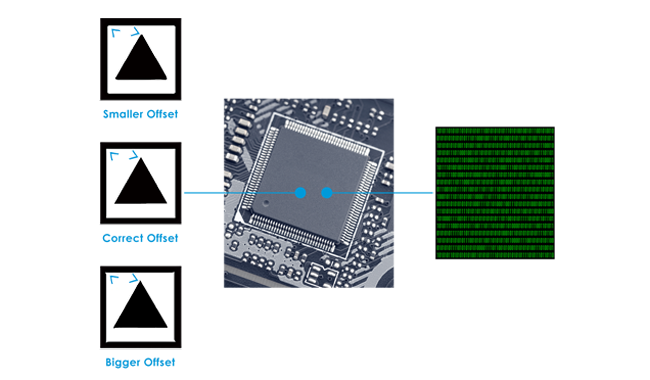

Unlike the method of merely using third-party software for tool-tip compensation, we have embedded the tool-tip compensation program into the chip of the control system. This approach effectively avoids the loss of cutting accuracy caused by software changes. As a result, out cutting machine is capable of performing stable high-precision cutting operations.
No Need Overcut

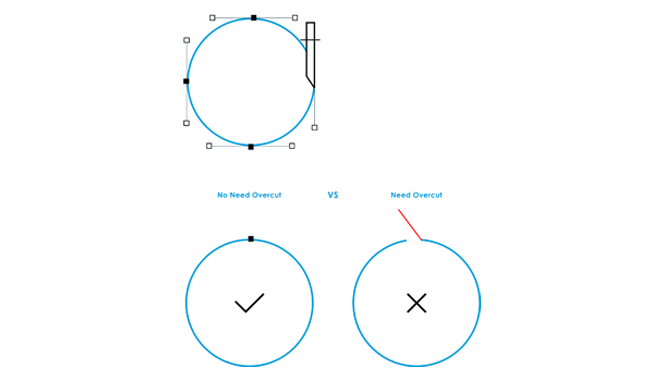

Due to the adoption of advanced motion control algorithms, in each cutting path, the starting and ending points can coincide, eliminating the necessity to set overcutting, more importantly results in a more aesthetically pleasing trimmed interface.
Outstanding Cutting Quality

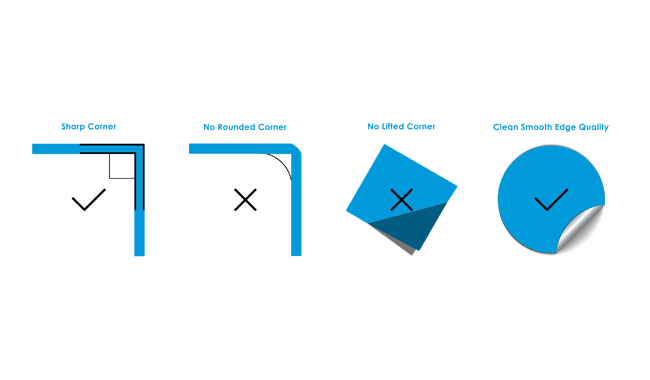

Our controller adopts advanced motion control algorithms, which effectively improves the cutting accuracy. This is manifested in sharper acute angles that will not be lifted or become rounded.
Excellent Anti-static Performance

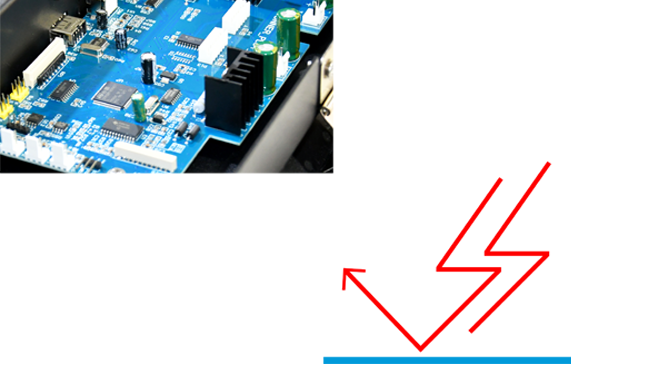

Static electricity can severely disrupt the operation of a digital cutter. Therefore, we have placed significant emphasis on enhancing the machine's anti - static performance. This measure ensures that the machine can operate smoothly throughout the year, particularly during the autumn and winter seasons when staticelectricity is more prevalent.
Using Servo Motors

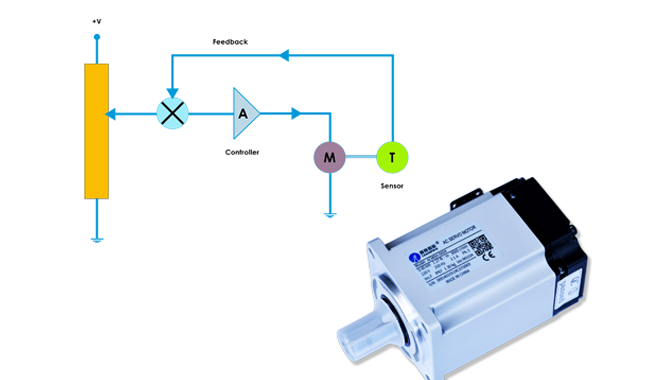

The servo motors we utilize meet medical standards, they not only offer outstanding stability but also have features like high - speed operation, high torque output, and quiet running.
Using Vacuum Table

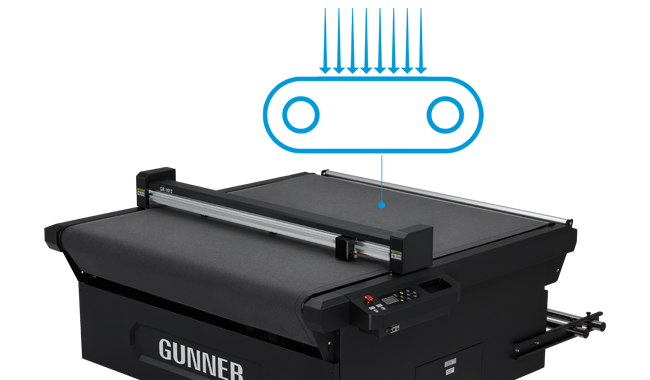

The vacuum worktable boasts excellent levelness,which contributes to the precise control of the cutting depth. Equipped with a dense array of air - suction ports, the worktable can firmly and evenly fix the materials being processed. As a result, both the cutting speed and precision are significantly enhanced.
The Advantages of the Vacuum Table

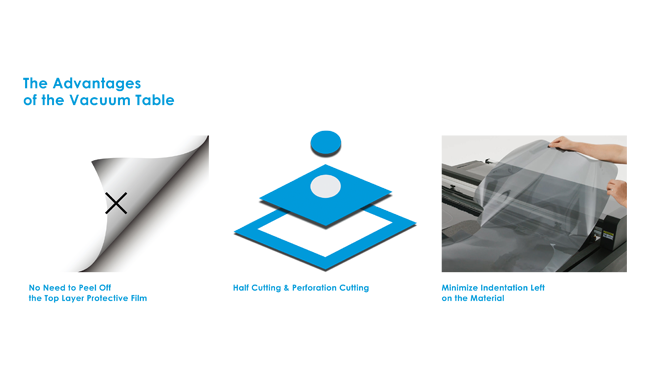

- No Need to Peel Off the Top Layer Protective Film. - Half Cutting & Perforation Cutting. - Minimize Indentation Left on the Material.
Using Auto-feeding System

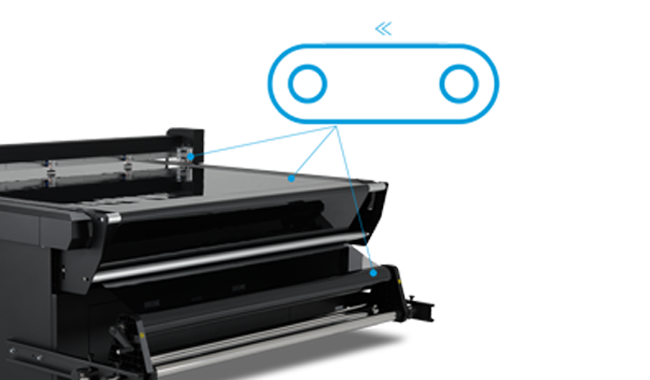

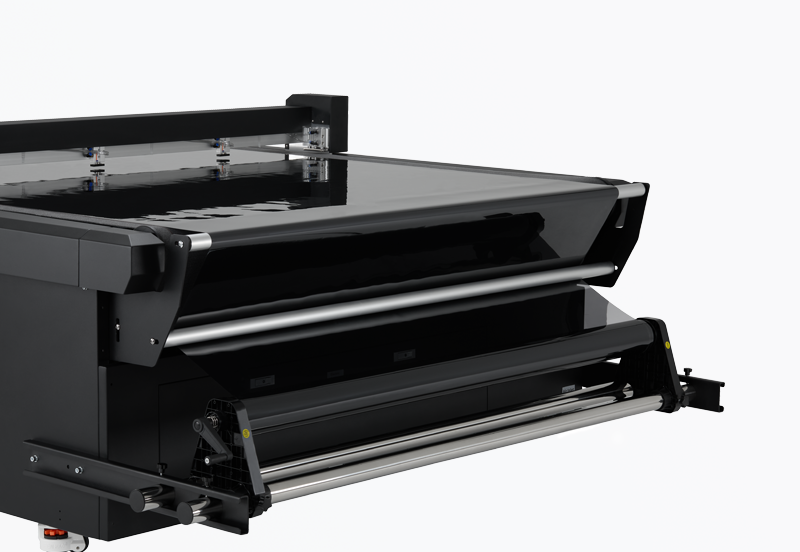

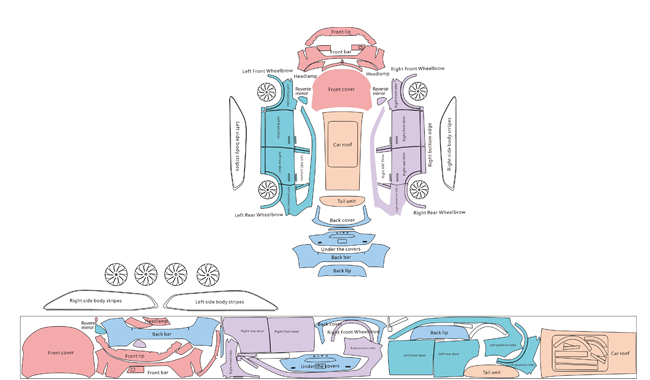

The automatic feeding system enables seamless connection for extra - long format cutting/ plotting processing. In cooperation with the CCD camera, it can achieve fast and precisely guided nested cutting and contour cutting.
The Advantages of Gantry Moving and Segmented Area Cutting
By adopting gantry movement instead of moving the material back and forth, material deviation is minimized, greatly enhancing the cutting accuracy of extra-large and extra-long workpieces. The continuous cutting function allows for the complete cutting of such workpieces without having to break them up.
Using CCD Camera

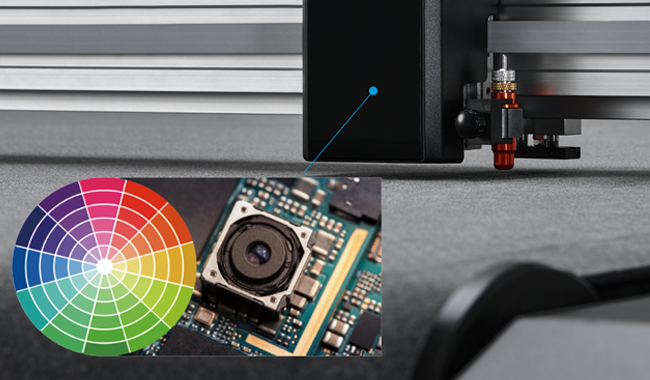

Compared with red laser sensors, CCD cameras can identify the contours of complex shaped images much more rapidly. CCD cameras are capable of recognizing a wider variety of colors and are applicable to a greater number of material types. Our software enables automatic one - click identification of the contours of graphics and the addition of registration marks.
Compatible with Popular Professional Pattern Software

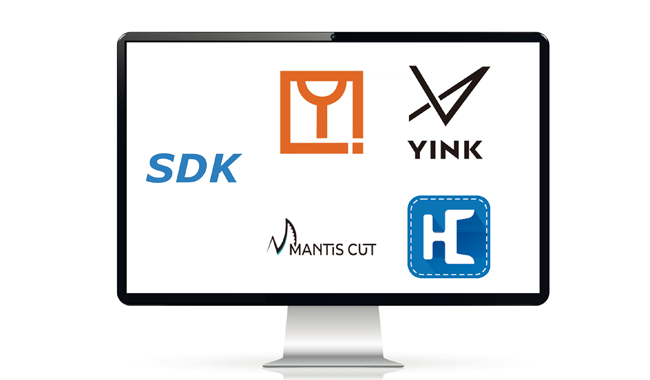

Our cutting machines are now compatible with a wide range of professional pattern software that are widely used in the automotive industry, including well - known ones like YINK, Mantis, and INTEGO. Moreover, we offer Software Development Kit(SDK) to ensure seamless integration with your specified software.

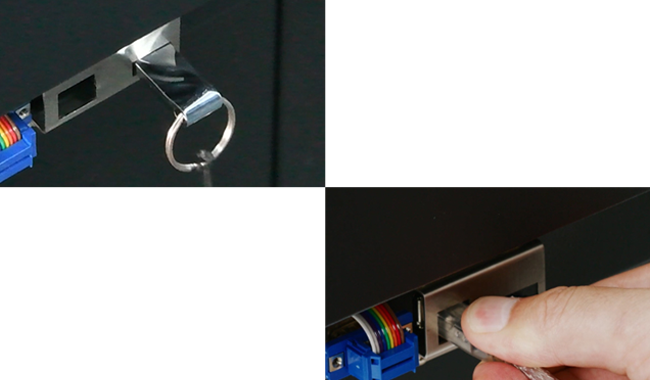

Compatible with USB Flash Drive and USB Cord for Data Transfer
To facilitate the transfer of cutting files, we have adopted two data reception methods. One is to use a USB flash drive, and the other is to directly connect the cutting machine to a computer via a USB data cable. Users can choose the method they prefer.

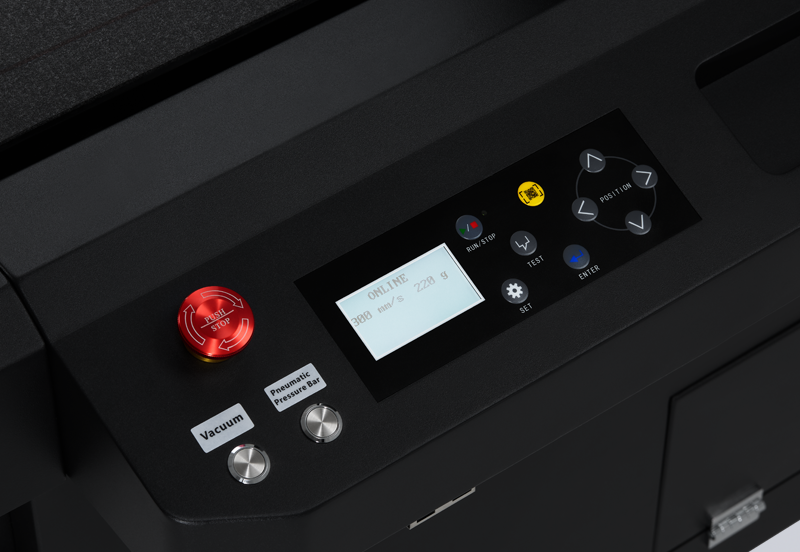

Streamlined Operations & User-friendly HMI

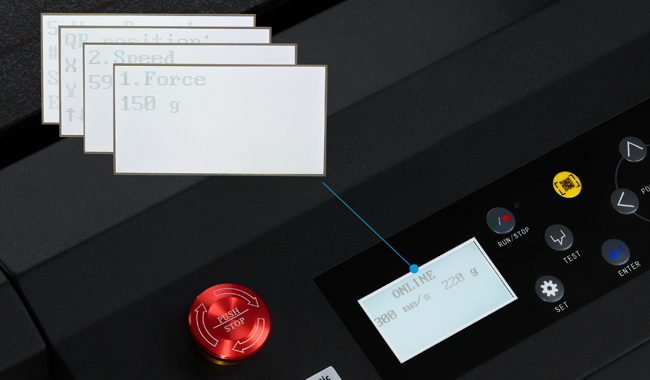

Drawing on years of experience accumulated from numerous users, we have continuously optimized the operation steps and methods of our machines. Now, we offer a relatively more concise operation menu, which is conducive to users' efficiency improvement. Tailored to the specific needs of different clients or industries, we are also capable of formulating targeted software and hardware solutions.
Quality Components

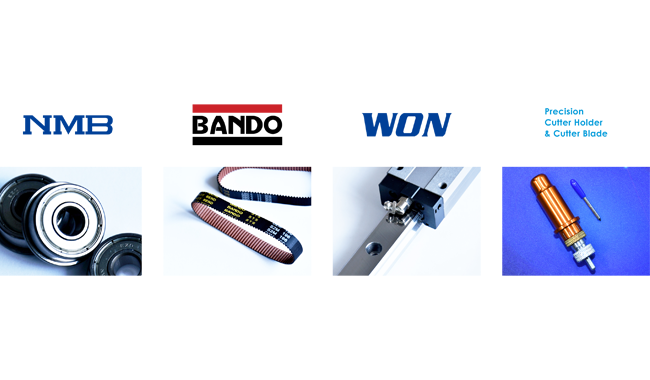

Every investment pays off. We carefully choose components from top international brands to build a reliable core for the machine. This ensures long - term, stable, and efficient operation, supporting your production. Also, our product layout considers your needs, so you can buy accessories nearby and maintain the equipment easily. This saves your time and money, letting you focus on business development without worries.

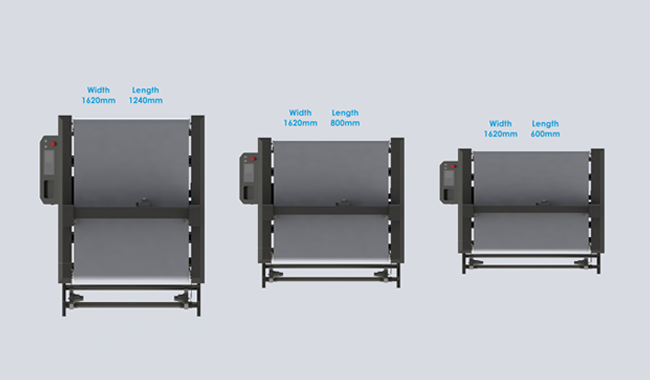

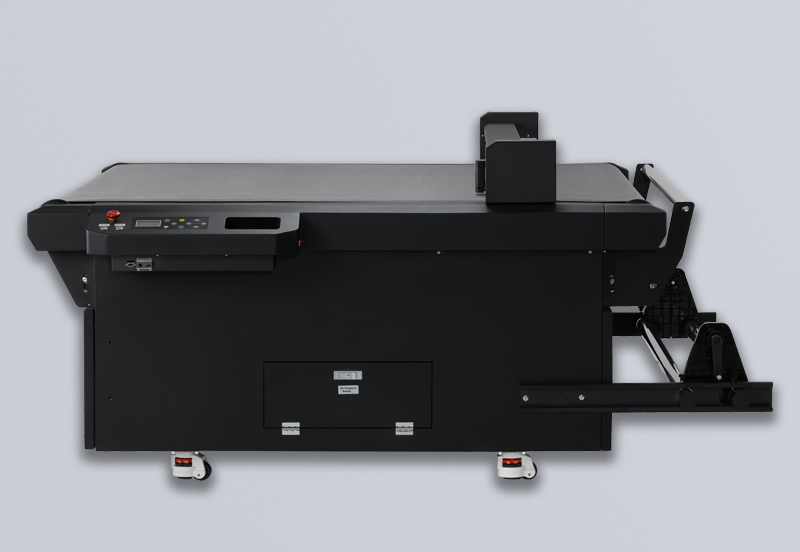

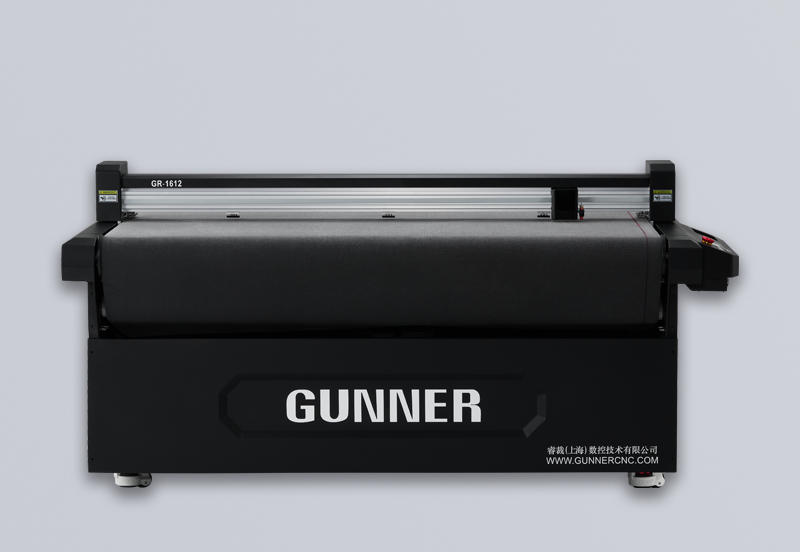

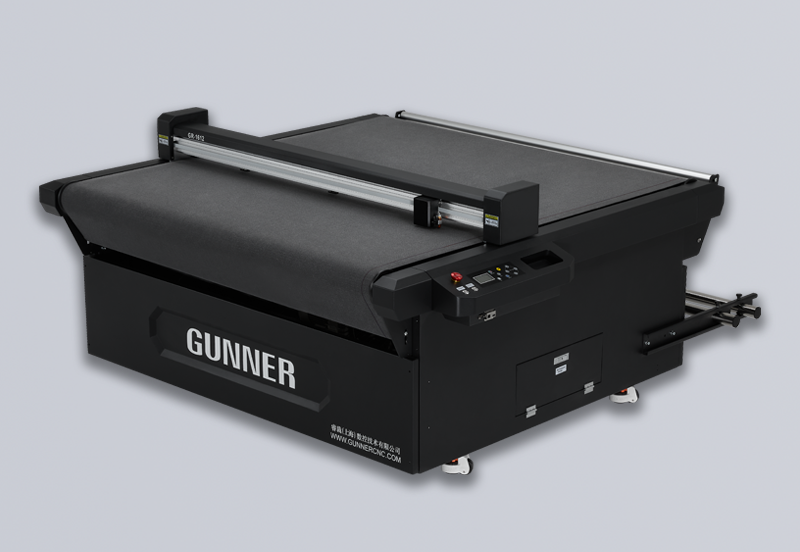

Multiple Models Available
We present an extensive selection of machine models in a wide array of sizes. Moreover, we are capable of tailoring these models to meet the specific requirements of our clients, ensuring that every unique need is precisely addressed.
CE Available
Our product is honored to have been awarded the EU CE certification, fully complying with the stringent MD, EMC, and RoHS standards.
Parameters
| Standard Specifications, Subject to Change without Notice | ||
| Model | GR-1612F | GR-1660F |
| Working Size on X axis | 1565mm (Non-contour Cutting) | 1565mm (Non-contour Cutting) |
| 1520mm (Contour Cutting) | 1490mm (Contour Cutting) | |
| Working size on Y axis | Sheet Material: 1240mm | Sheet Material: 600mm |
| Roll Material: Full Roll | Roll Material: Full Roll | |
| Max. Material Width Applicable | 1620mm | 1620mm |
| Applicable Material Thickness | ≤ 59 mil | |
| Applicable Material | PPF, Window Tint, Vinyl Stickers, Reflective Sheeting | |
| Material Feeding Method | Conveyor & Roll Material Bracket | |
| Material Fixing Method | Vacuum Table | |
| Max. Cutting Speed | 600mm / s | |
| Max. Cutting Force | 600G / 5.8N in 8 Steps | |
| Cutting Force Setup | Adjustable in Every 1 G | |
| Cutter Blade Diameter | Φ2.0mm | |
| Cutter Blade Angles | 30° , 45° , 60° | |
| Drive on X, Y | DC Servo on X | |
| AC Servo on Y | ||
| Drive on Z | Voice Coil Motor | |
| Mechanical Resolution | 0.0125mm | |
| IOS | Win11 / 10 / 8 / 7 | |
| Memory Buffer | 2MB | |
| CAD / CAM Software Compatible | AccCUT, YINK, MANTIS CUT, SMARTCUT,ZHITU, CorelDRAW | |
| Software Development Kit / SDK | Available | |
| LCD | English / Chinese | |
| File Format | HP-GL , PLT | |
| Port in Standard | USB , RS-232 | |
| Power Input | AC 110- 220V，50-60Hz | |
| Power Consumption | 3.2kw | |
| Air Requirements | Dry Air with Air Pressure ≥ 0.6Mpa | |
| Cutter Holder | 1 | |
| Roll-material Bracket | Included | |
| Options | CCD Camera | |
| Air Compressor | ||
| Power Transformer with Input Single - phase Voltage 110V & Output Single - phase Voltage 220V | ||
| Floor Plan W-L-H | 2080 x 2200 x 1030mm | 2050 x 1150 x 1200mm |
| Package Size W-L-H | 2000 x 2200 x 1170mm | 2200 x 1220 x 1350mm |
| Gross / Net Weight | 520 / 360kg | 280 / 320kg |
