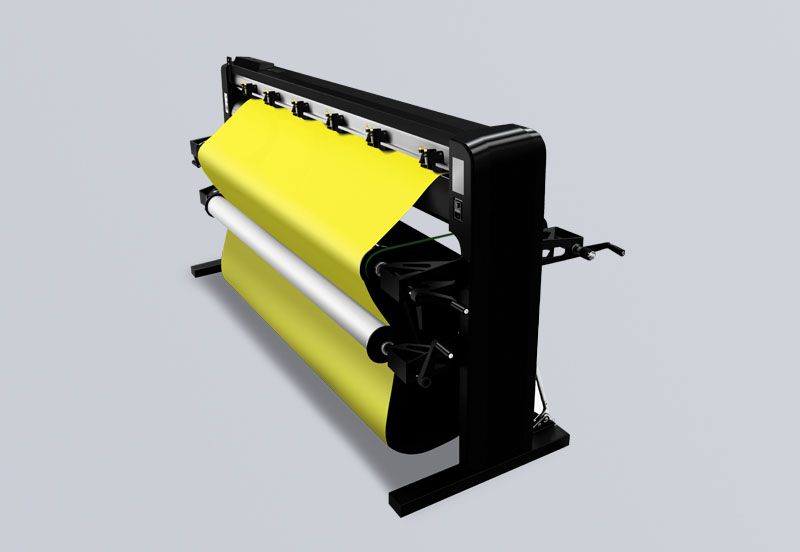

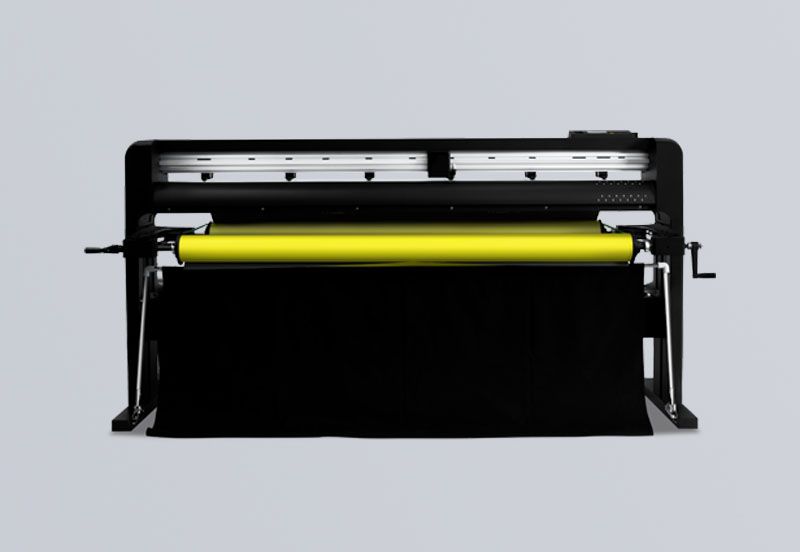

About GR8000-180 PRO
Unlike the auto-feeding flatbed cutter, which is positioned as a solution for regional processing centers, the GR8000-180 PRO is designed to meet the processing needs of small and medium-sized shops.
In addition, the GR8000-180 PRO comes with a lower price tag and a smaller footprint, making it more attractive to small and medium-scale users.
The GR8000-180 PRO features essentially the same performance characteristics as auto-feeding flatbed cutters, including processing accuracy, anti-static interference capability, and processing stability.
In terms of functionality, the most significant difference is that the GR8000-180 PRO does not support through-cutting, which is determined by its mechanical structure. In addition, the cap-sheet must be removed before cutting with the GR8000 PRO. For this purpose, we provide an automatic film peeling device and a static elimination device, which reduce labor and minimize electrostatic interference.

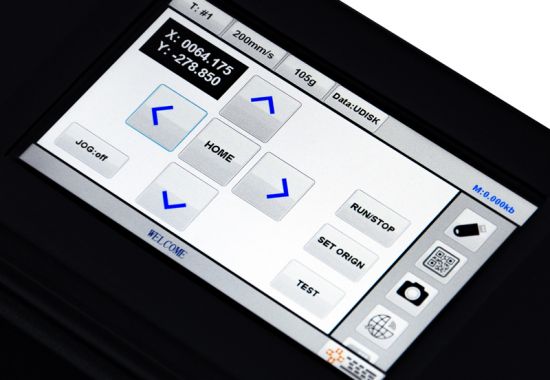

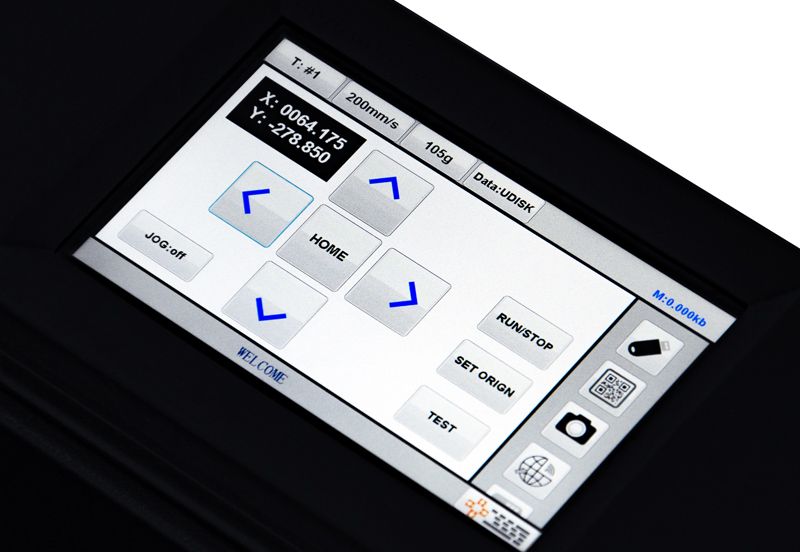

Independently Developed Controller - Generation 2nd
We not only manufacture hardware, but also independently develop our own CNC systems, which distinguishes us from most competitors. The most prominent advantages of our new-generation control system are faster computing speed and higher cutting accuracy. In addition, this control system features: real-time machining simulation, easier parameter modification, touch-screen operation.

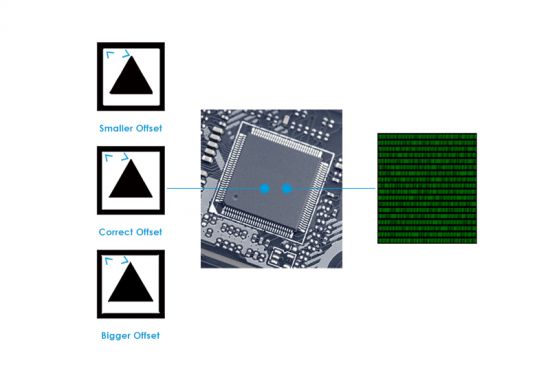

Tool-tip Compensation Has Been Embeded into Chip
Unlike the method of merely using third-party software for tool-tip compensation, we have embedded the tool-tip compensation program into the chip of the control system. This approach effectively avoids the loss of cutting accuracy caused by software changes. As a result, out cutting machine is capable of performing stable high-precision cutting operations.

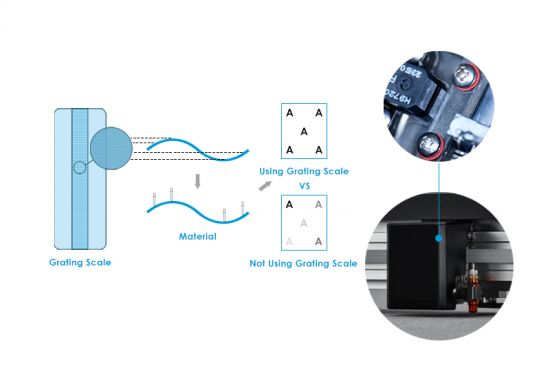

Using Grating Scale
In actual situations, the surface of the machine table and that of the material being processed will inevitably experience certain undulations. This necessitates that the cutting tool be able to float accordingly. Otherwise, issues such as excessive or insufficient cutting depth will arise, which in turn leads to difficulties in smooth waste removal. Outperforming the vast majority of competitors, we took the lead in adopting precise grating scale to detect the distance between the tool-tip and the material surface in real - time. This enables us to adjust the cutting pressure in real - time to regulate the cutting depth. Consequently, a uniform cutting depth within the material can be achieved, allowing for easy waste removal after cutting. Meanwhile, the cutting tool will not damage the surface of the machine table.

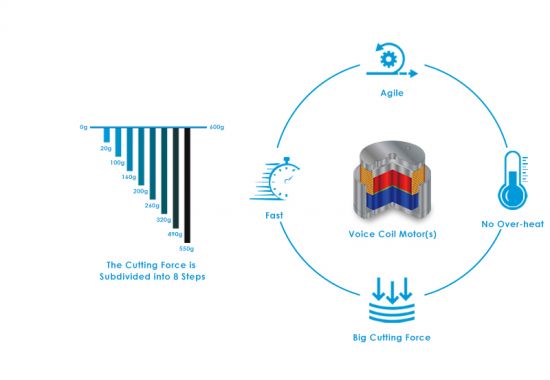

Using Voice-coil Motor
Unlike electromagnets, voice coil motor can execute commands for pressure adjustment with greater sensitivity, thereby ensuring more consistent cutting depths. Moreover, voice coil motor can cut ultra - thin materials with higher precision, as it is capable of outputting a minimum cutting pressure of 20 grams. Additionally, voice coil motor features low noise and do not overheat even after extended periods of operation.

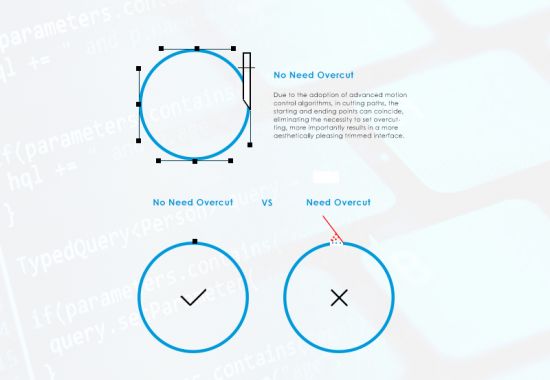

No Need Overcut
Due to the adoption of advanced motion control algorithms, in each cutting path, the starting and ending points can coincide, eliminating the necessity to set overcutting, more importantly results in a more aesthetically pleasing trimmed interface.
Outstanding Cutting Quality
Our controller adopts advanced motion control algorithms, which effectively improves the cutting accuracy. This is manifested in sharper acute angles that will not be lifted or become rounded.

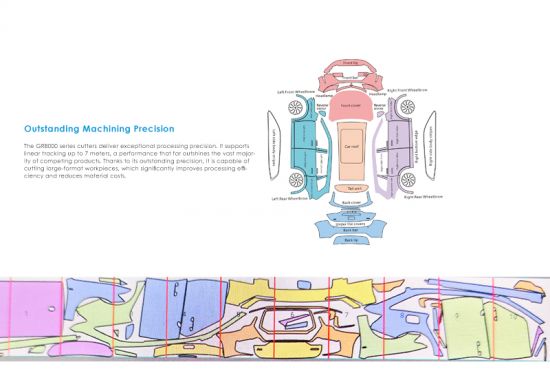

Outstanding Machining Precision
The GR8000 series cutters deliver exceptional processing precision. It supports linear tracking up to 7 meters, a performance that far outshines the vast majority of competing products. Thanks to its outstanding precision, it is capable of cutting large-format workpieces, which significantly improves processing efficiency and reduces material costs.

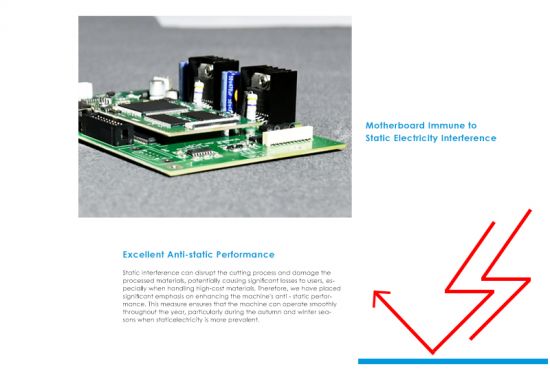

Excellent Anti-static Performance
Static interference can disrupt the cutting process and damage the processed materials, potentially causing significant losses to users, especially when handling high-cost materials. Therefore, we have placed significant emphasis on enhancing the machine's anti - static performance. This measure ensures that the machine can operate smoothly throughout the year, particularly during the autumn and winter seasons when staticelectricity is more prevalent.
Using Servo Motors
The servo motors we utilize meet medical standards, they not only offer outstanding stability but also have features like high - speed operation, high torque output, and quiet running.
Media Sensor
This sensor is used to detect media dimensions. If the media size is incompatible with the design content, cutting or plotting operations will not be executed, and the controller will prompt the operator to either use larger media or reduce the size of the design content. The media sensor effectively reduces media waste and improves operational efficiency.

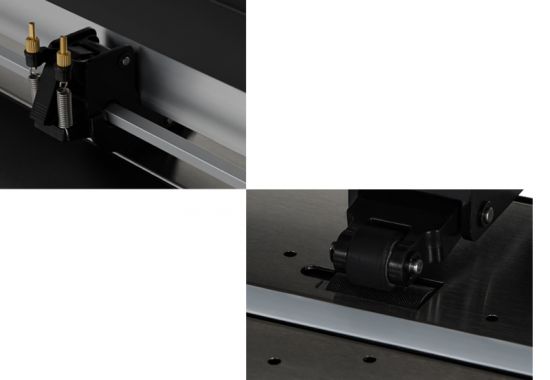

Precise Push Rollers & Grit Rollers
We use three different materials to manufacture the push rollers, not just ABS. This allows the push rollers to operate for extended periods without deformation, ensuring stable and precise cutting. We use the same grit rollers as top international brands of cutters. Although the cost is higher, their performance surpasses many competitors, which is especially crucial for long-distance precise cutting.

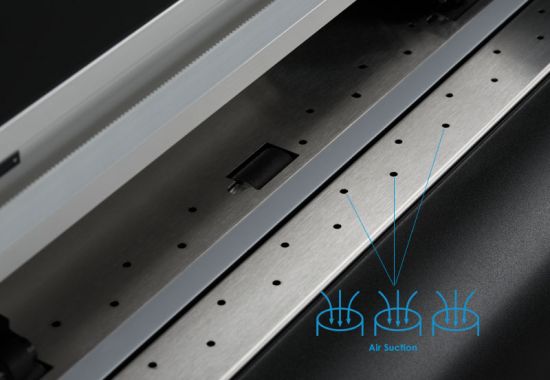

Air Suction
Our machine is equipped with an air suction system, which helps hold the material firmly in place and keeps it perfectly flat. This effectively improves cutting accuracy.

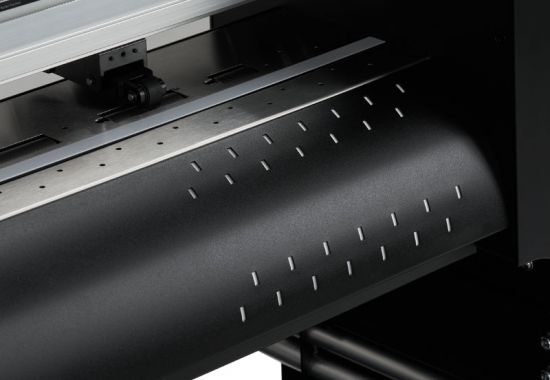

Positioning Marks
To facilitate operation, we have added positioning marks. They allow for quick and accurate material placement, while also enabling real-time monitoring of the material’s path during processing.

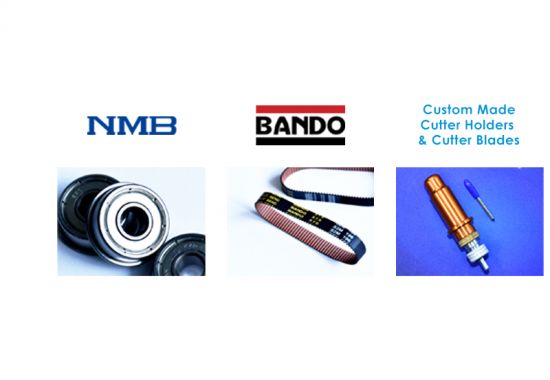

Quality Components
We carefully choose components from top international brands to build a reliable core for the machine. This ensures long - term, stable, and efficient operation, supporting your production. Also, our product layout considers your needs, so you can buy accessories nearby and maintain the equipment easily. This saves your time and money, letting you focus on business development without worries.
Compatible with Popular Professional Pattern Software
Our cutting machines are now compatible with a wide range of professional pattern software that are widely used in the automotive industry, including well - known ones like SIGNLab, ULTRAFILMCUT, YINK, Mantis, INTEGO,etc. Moreover, we offer Software Development Kit(SDK) to ensure seamless integration with your specified software.

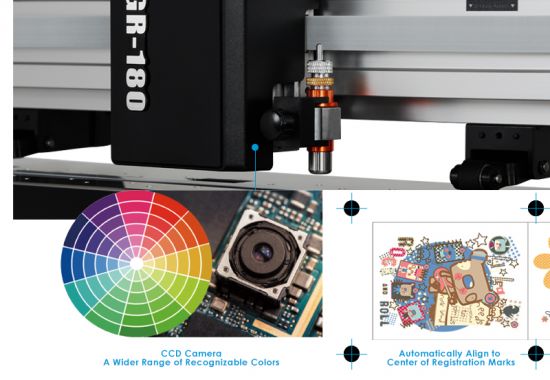

Using CCD Camera
Compared with red laser sensors, CCD cameras can identify the contours of complex shaped images much more rapidly. CCD cameras are capable of recognizing a wider variety of colors and are applicable to a greater number of material types. Our software enables automatic one - click identification of the contours of graphics and the addition of registration marks.
CE Available
Our product is honored to have been awarded the EU CE certification, fully complying with the stringent MD, EMC, and RoHS standards.
Parameters
| Standard Specifications, Subject to Change without Notice | |
| Model | GR8000-180 PRO |
| Working Size on X Axis | 1630mm |
| Working Size on Y Axis | Full Roll |
| Max. Material Width Applicable | 1780mm |
| Min. media width applicable | 70mm |
| Applicable Material Thickness | ≤59 mil |

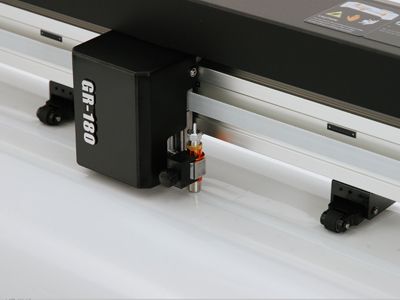

| Applicable Materials | PPF, TPU PPF, Window Tint Film, PVC, Color Film |
| Material Feeding Method | Push Rollers & Grit Rollers |
| Material Fixing Method | Push Rollers & Grit Rollers &Air Suction |
| Max. Cutting Speed | 800mm / s |
| Max. Cutting Force | 600g / 5.8N in 8 Steps |
| Cutting Force Setup | Adjustable in Every 1 g |
| Cutter Blade Diameter | Φ2.0mm |
| Cutter Blade Angles | 30° , 45° , 60° |
| Perforation Cutting Feature | Included |
| Drive on X, Y | Servos |
| Drive on Z | Voice Coil Motor |
| Mechanical Resolution | 0.0125mm |
| IOS | Win11 / 10 / 8 / 7 |
| Memory Buffer | 32MB |
| Software Included | Windows Drive, SignWorkPro, Software Development Kit/ SDK |
| CAD / CAM Software Compatible | SIGNLab,ULTRAFILMCUT, AEONCUT,YINK, MANTIS CUT, SMARTCUT,ZHITU, CorelDRAW |
| Touchscreen | Standard: English / Chinese |
| Option: Russian, Korean | |
| File Format | HP-GL , PLT |
| Port in Standard | USB , LAN |
| Registeration Marks Recognition | CCD Camera |
| Power Input | AC 110- 220V，50-60Hz |
| Power Consumption | 160w |
| Cutter Holder | 1 |
| Roll-material Bracket | Included |
| Cap-sheet Remover | Included |
| Floor Plan W-L-H | 2300 x 1100 x 1080mm |
| Package Size W-L-H | 2200 x 830 x 1250mm |
| Gross / Net Weight | 167 / 115kg |
